Fruit processing plant juicer extractor machine commercial fruit orange juicer machine

1.0 Sets
MOQ
Fruit processing plant juicer extractor machine commercial fruit orange juicer machine
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Condition: New
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops, Fruit and Vegetabls Plant
Showroom Location: Pakistan, Kenya, Sri Lanka, Bangladesh
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: PLC, Motor, Gear, Pump
Model Number: ZZJ-3, ZZJ-5, ZZJ-8, ZZJ-10, customized
Voltage: 220V/380V/415V
Power: 9kw
Dimension(L*W*H): 2200*2250*2800mm
Weight: 500 KG
Warranty: 1 Year
Application fields: Fruit processing plant, Vegetable processing plant, Beverage Factory, Fruit juice factory
Machinery Function: Juicing and Extracting
Raw material: Fruit, Vegetables
Output product name: Fruit and vegetables juice
Key Selling Points: High efficiency
After-sales Service Provided: Overseas service center available, Field installation, commissioning and training
Material: SUS304/316L
Product name: juicer extractor machine commercial
control type: automatic
Certificate: ISO9001:2008/HACCP/GMP
Effeciency: High
Type: turnkey project
Usage: Juicer Extrator
Capacity: 3TPH-10TPH
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Pakistan, Kenya, Sri Lanka, Bangladesh
Zertifizierung: CE and ISO
Grundinformation
Zertifizierung: ISO9001:2008/HACCP/GMP, CE and ISO
Model Number: ZZJ-3, ZZJ-5, ZZJ-8, ZZJ-10, customized
Zahlung und Versand AGB
Packaging Details: Standard Export Package including Wooden case,PE wrap film,Carbon Steel
Supply Ability: 5 Set/Sets per Month
Produkt-Beschreibung

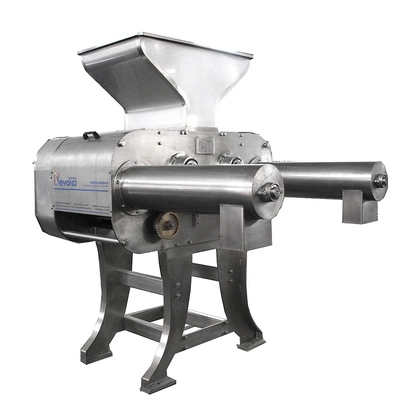

Juicer extractor machine commercial fruit orange juicer machine
Product Description
Roller half-cut juice extractor is the international advanced continuous automatic juice extracting machine used for orange, lemon, grapefruit, etc. After the grading and oil extracting, the fruit(orange, lemon, grapefruit) will be fed into this machine, and transported through the bowl-shape conveyor , it will cut them in to two halves, and separately send to two vertical rotating hubs to get the juice, and automatically separate the peel and juice. This machine is continuous type automatic rotation coning juice, it is advanced in structure, stable in transmission, high in production efficiency. During the juicing extracting process, it will not crush the peel of fruit, thus it will provide the high quality juice with high juice yield.
1
Master machine
2
Auto control Cabinet
3
Extraction of pineapple,apple,pear,berry etc.
4
High jucing rate
5
Energy saving
6
continuous working
Direction for use
It adopts the foreign advanced technology, can be applicable for fresh juice extracting from tangerine, orange, grapefruit, lemon, etc., and avoid the bitter vegetable oil remained in fruit cells and residue from fruit peels.This machine is composed of the parts: machine frame, gear box, juice collecting bucket, left rotor drum, blades, 4-opens rotary tables, right rotor drum, bowl-shape conveyor, safety cover, driving motor, etc. The working theory is the motor drives the main shaft through the V-belt pulley, the main shaft will transfer the power to the following structures: bowl-shape conveyor, 4-opens rotary tables, left rotor drum, and right rotor drum.

  • Description of application effect

The machine is suitable for fresh juice extracting from tangerine, orange, grapefruit, lemon, etc. Features: Machine capacity: 300-320 pcs/mins; Juice extracting rotor drum: 2 numbers; Extracting heads: 7 pcs/ drum; Motor power: 5.5kw, 960r/min; Machine size: 1700×1670×1600mm(Length×Width×Height); Machine net weight: 2T; This machine is continuous type automatic rotation coning juice, it is advanced in structure, stable in transmission, high in production efficiency. During the juicing extracting process, it will not crush the peel of fruit, thus it will provide the high quality juice with high juice yield. The materials contacting with product is made of good quality stainless steel, comply with food hygienic standard; The whole frame structure, good rigidity, stable working, and small vibration; It is equipped with centralized CIP cleaning device.
Detailed Images
This machine is continuous type automatic rotation coning juice, it is advanced in structure, stable in transmission, high in production efficiency. During the juicing extracting process, it will not crush the peel of fruit, thus it will provide the high quality juice with high juice yield.The materials contacting with product is made of good quality stainless steel, comply with food hygienic standard.
Size Information
Size Chart of This Design
Model
Capacity
Motor power:
Mechanical size
Extracting heads
ZZJ-5
5TPH

5.5KW,960r/min
1700*1670*1600mm
7 pcs/ drum
ZZJ-10
10TPH

9KW,960r/min
2200*2250*2800mm
7 pcs/ drum
Related Products
Company Introduction
Shanghai Beyond Machinery Co., Ltd is a professional technology developing enterprise which mainly engaged in healthy equipment fields. Combined with R& D, procedure design service, turnkey base project, equipment manufacturing, installation, commissioning and training, our company is specialized in turnkey projects services widely applicable to food industry such as fruit and vegetable juice, dairy product and beverage, meat and bone, egg product, etc. and others include pharmaceuticals and fine chemicals as well. Beyond acted as pioneer to introduce and absorb advanced international technology and procedures, continuously innovate and positively promote deep communication and cooperation inside industry, which high effectively push industry develop healthily and orderly.

Our Services & Strength

Installation and commission on site;Online technical video support;Spare parts;Maintenance services; Oversea service agent ; local exhibiton hall.
Our Services
Packing&Shipping
Standard Export Package including Wooden case,PE wrap film,Carbon Steel
FAQ
1 ) Q: How can we visit your factory? A: If you come from abroad, air to shanghai airport, then we can pick you up at airport. 2) Q: How do you ensure the quality of your products? A: Our Company is a state owned enterprise with more than 16 years experience , strict operation policy is performed, advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state. 3) Q: What payment methods your company accept? A: We accept most of the payment methods , but mainly accept T/T, L/C at sight . 4) Q: How long is the warranty time for your products? A: Our officially promised warranty time is 12 months after commissioning . 5) Q: I am new in this field,can you supply us turnkey services? A: YES.We can supply all the system including Market Analysis/Product Analysis/Location Choice/Processing Flow Design/Equipment Layout Design/Building Design direction/Equipment mode selection/Equipment Manufacturing/Equipment Mounting/Equipment Debugging/Worker Training. 6) Q: I haven't done business with you company before, how can I trust your company ? A: Our company has been in Alibaba.com for 14 years, which is longer than most of our fellow suppliers, we have been golden suppliers for years. What ' s more, we have got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. 7) Q: What ' s the shipment terms and delivery time of your company? A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary. 8) Q: Can you supply OEM services? A: Yes,we have our R&D team,and we have more than 400 workers with workshop area 75000 square meters. 9) Q: Do you give any Discount? A: I will surely try my best to help you get those by the best price and good service at the same time.
